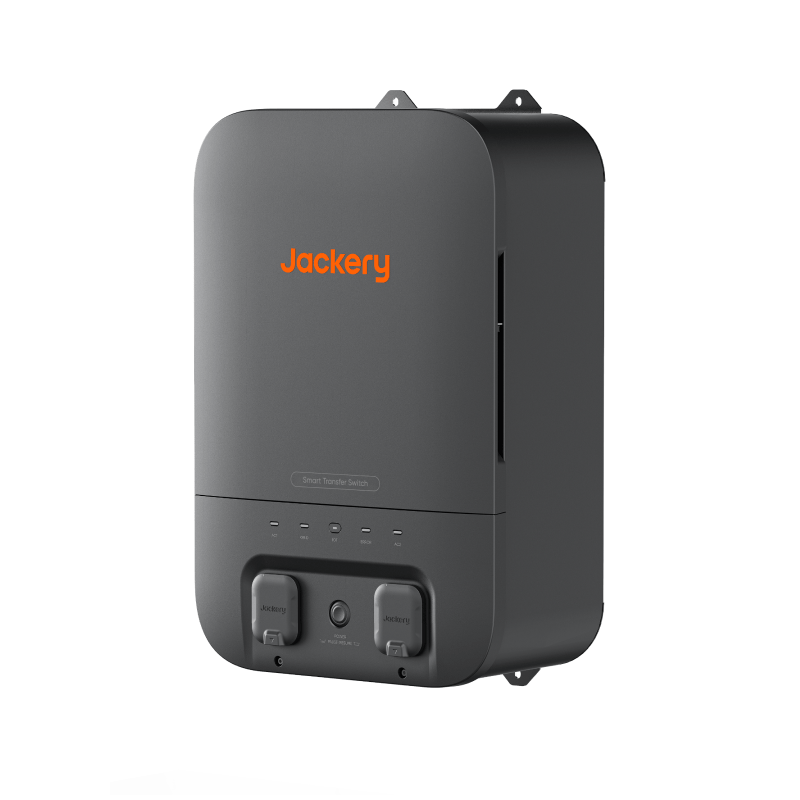

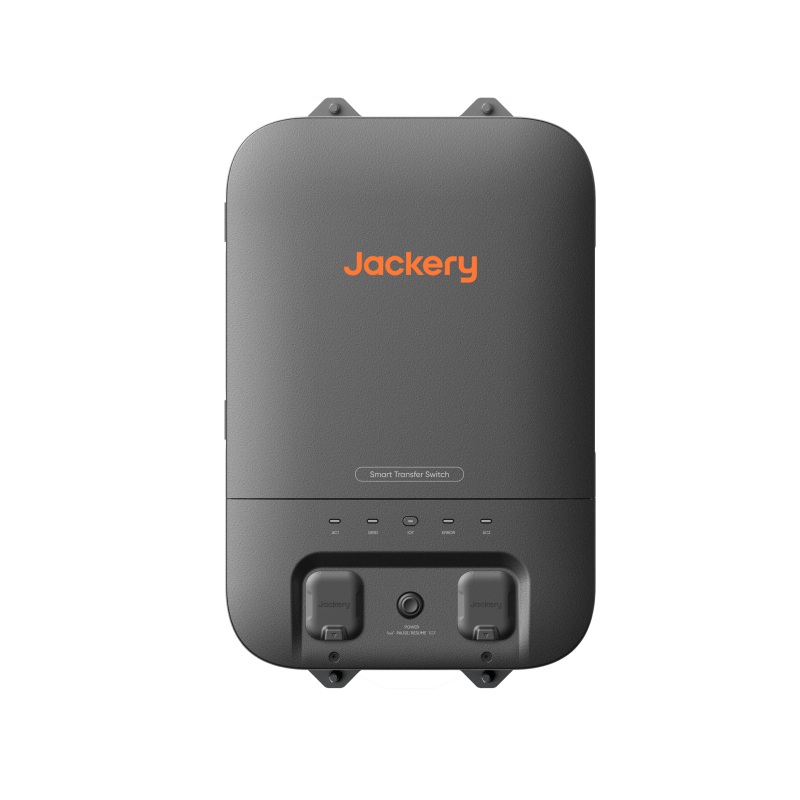

Jackery Smart Transfer Switch

Integrated Home Backup for the Jackery 5000 Plus Series

The Jackery Smart Transfer Switch connects a compatible Jackery Explorer 5000 Plus home backup system with selected household circuits, allowing the system to automatically provide backup power when utility power is interrupted.

Designed for 120V/240V split-phase residential electrical systems, the Smart Transfer Switch supports up to 12 load branches and provides automatic transfer to compatible Jackery backup power within 20 milliseconds.

Wi-Fi and Bluetooth connectivity also enable compatible monitoring and energy-management functions through the Jackery system.

Key Features

• Designed specifically for the Jackery 5000 Plus Series

• 120V/240V, 60Hz split-phase operation

• Supports up to 12 load branches

• Automatic backup-power transfer within 20ms

• 100A maximum grid input current

• 60A maximum power-station input current

• 60A maximum home-load output current

• Wi-Fi and Bluetooth connectivity

• Compatible with Jackery smart energy-management functions

• NEMA Type 1 enclosure

• Designed for indoor residential electrical installations

• Integrates compatible Explorer 5000 Plus systems with selected household circuits

Specifications

Jackery 5000 Plus Compatibility

The Jackery Smart Transfer Switch is designed for use with the Jackery 5000 Plus Series.

It enables compatible Explorer 5000 Plus systems to supply selected household circuits through an integrated home-backup installation.

This product should not be assumed compatible with other Jackery Explorer models simply because they provide 120V or 240V AC output.

Before purchasing, verify that your intended Jackery system and home electrical configuration meet Jackery's compatibility and installation requirements.

Automatic Backup Power

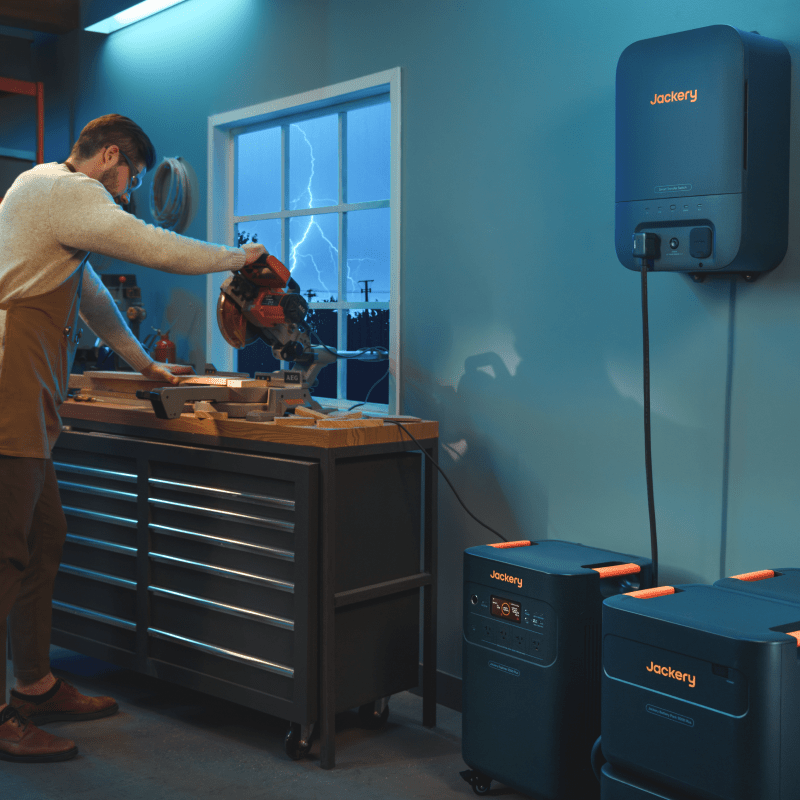

When installed with a compatible Jackery 5000 Plus system, the Smart Transfer Switch can automatically transfer selected household circuits from utility power to the connected Jackery backup system when an outage occurs.

Jackery specifies a transfer time of 20 milliseconds or less.

This allows compatible household loads to transition rapidly to backup power during a utility interruption.

A ≤20ms transfer specification should not be interpreted as a 0ms online UPS. Equipment requiring specialized or truly uninterrupted power protection should be evaluated according to the equipment manufacturer's requirements.

12-Circuit Home Integration

The Smart Transfer Switch supports up to 12 load branches, allowing selected household circuits to be incorporated into the Jackery backup system.

Which circuits should be connected depends on:

• The home's electrical system

• Applicable electrical codes

• Available backup-power capacity

• Circuit voltage and current requirements

• Expected simultaneous loads

• Installation requirements

• The configuration of the connected Jackery 5000 Plus system

The Smart Transfer Switch does not increase the output capacity of the connected Explorer 5000 Plus system.

The electrical loads connected to the system must remain within the capabilities of the installed Jackery equipment.

Smart Energy Management

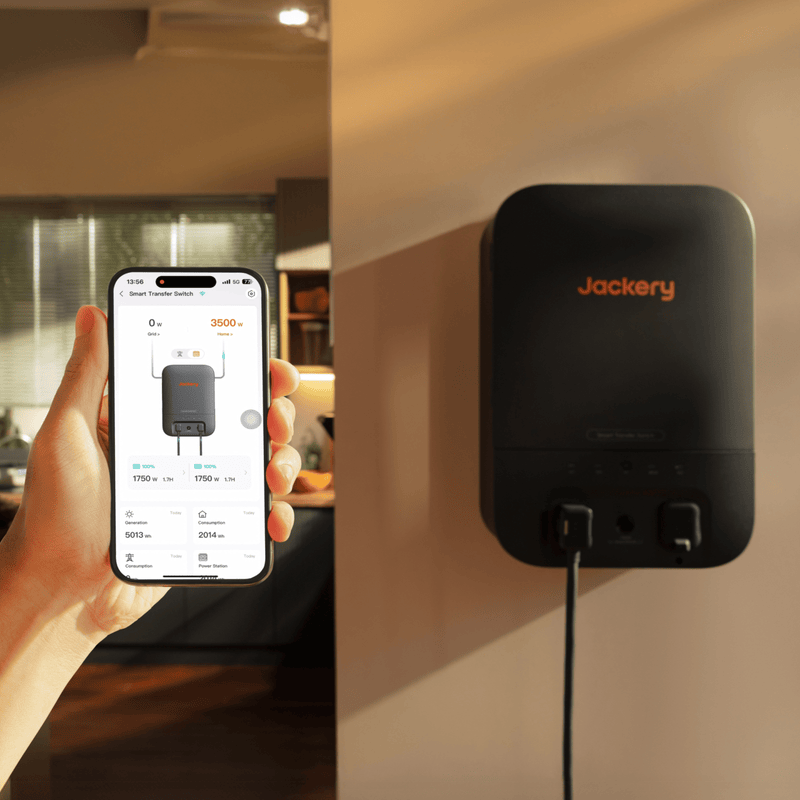

The Smart Transfer Switch includes Wi-Fi and Bluetooth connectivity for compatible Jackery monitoring and energy-management functions.

Depending on the connected Jackery system and available features, the system can support monitoring and management of home backup and energy usage through Jackery's compatible software.

Available app features may change through software or firmware updates and can depend on the connected equipment and system configuration.

Solar and Home Energy Integration

When paired with a compatible Explorer 5000 Plus system, the Smart Transfer Switch can form part of a home energy system incorporating compatible Jackery battery storage and solar charging.

Solar panels do not connect directly to the Smart Transfer Switch.

Compatible solar equipment connects through the applicable Explorer 5000 Plus solar-input system. The Smart Transfer Switch manages the connection between the compatible Jackery backup system and selected household electrical circuits.

Solar generation and available backup duration depend on the connected Jackery equipment, battery capacity, solar configuration, household loads, environmental conditions, and other factors.

Professional Installation Required

The Jackery Smart Transfer Switch connects to a home's electrical system and should be installed by a qualified, licensed electrician in accordance with Jackery's installation instructions and all applicable electrical codes and regulations.

Jackery recommends coordinating installation through its installation process and trained installation professionals.

Installation requirements and costs vary depending on the home's electrical system, location, existing equipment, selected backup circuits, and other site-specific conditions.

Installation service is not included with the Smart Transfer Switch unless specifically stated as part of the purchased offering.

Do not attempt installation unless you are appropriately qualified and authorized to perform the required electrical work.

Indoor Installation

The Smart Transfer Switch uses a NEMA Type 1 enclosure.

NEMA Type 1 equipment is intended primarily for indoor use and should not be treated as weatherproof outdoor electrical equipment.

Installation location must comply with Jackery's requirements and applicable electrical codes.

What's Included

The Smart Transfer Switch package includes:

• 1 × Jackery Smart Transfer Switch

• 1 × Marking-Off Template

• 1 × Power Input/Output Cable

• 2 × Wall Brackets

• 4 × M4 Phillips Flat-Head Screws

• 1 × User Manual

The Explorer 5000 Plus, expansion batteries, solar panels, installation labor, electrical modifications, permits, and other equipment are not included unless specifically stated as part of the purchased offering.

Important Installation and Compatibility Notice

The Jackery Smart Transfer Switch is intended specifically for compatible Jackery 5000 Plus Series home-backup systems.

Because installation involves a home's electrical distribution system:

• Professional installation is required.

• Compatibility should be verified before purchase.

• Connected circuits must remain within the capabilities of the installed Jackery system.

• Installation must comply with applicable electrical codes and permitting requirements.

• Installation costs and any required electrical modifications are separate unless expressly included with the purchased offering.

Please confirm your system configuration and installation requirements before purchasing.
